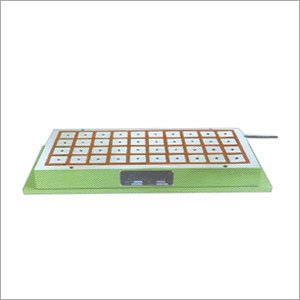

Electro Permanent Magnetic Chuck

Electro Permanent Magnetic Chuck
Electro Permanent Magnetic Chuck
Product Code : 05
Product Description

We have earned a stupendous market reputation by manufacturing and supplying a great range of Electro Permanent Magnetic Chuck. These chucks are used as work holding device for milling machines. We manufacture these chucks under the strict supervision of the expert professionals using the quality approved materials. Available in different sizes and specifications, our Electro Permanent Magnetic Chuck is tested on certain quality parameters by the quality inspectors.

Features:

  • No accidents owing to power failure

  • Maximal material removal is possible

  • Doesn’t require power continuously

Other Features:

  • Work holding device for milling machines.

  • Cold Device as it doesn't require power continuously except for short period of activation & deactivation.

  • Applicable for light milling i.e. 1-3mm depth of cut at recommended speed & feed.

  • Economical for operation & maintenance

  • Slippering force is 2.5 -3 kg/cm2

  • Vertical Lifting Force is 35-40 kg/cm2.

  • Variable supply unit to change power which helps in alignment of jobs.

  • Chunk is tested for Temperature rise test, Waterproof test, Slippering force, Electrical & Demagnetizing tests.

  • Good quality & standard electrical accessories.

  • We also fabricate special chunks to cater individual requirement.

Specifications:

Art No.

Size (mm)

2136.01

300L x 200W x 80H

2136.02

1000L x 200W x 90H

2136.03

250L x 250W x 80H

2136.04

300L x 250W x 80H

2136.05

350L x 250W x 80H

2136.06

400L x 250W x 80H

2136.07

600L x 250W x 80H

2136.08

800L x 250W x 90H

2136.09

900L x 250W x 90H

2136.10

1000L x 250W x 90H

2136.11

1500L x 250W x 90H

2136.12

300L x 300W x 80H

2136.13

350L x 300W x 80H

2136.14

400L x 300W x 80H

2136.15

600L x 300W x 80H

2136.16

800L x 300W x 90H

2136.17

900L x 300W x 90H

2136.18

1000L x 300W x 90H

2136.19

1500L x 300W x 90H

2136.20

600L x 350W x 80H

2136.21

1000L x 350W x 90H

2136.22

1200L x 350W x 90H

2136.23

400L x 400W x 80H

2136.24

600L x 400W x 80H

2136.25

800L x 400W x 90H

2136.26

900L x 400W x 90H

2136.27

1000L x 400W x 90H

2136.28

1200L x 400W x 90H

2136.29

1500L x 400W x 90H

2136.30

400L x 500W x 80H

2136.31

600L x 500W x 80H

2136.32

800L x 500W x 90H

2136.33

900L x 500W x 90H

2136.34

1000L x 500W x 90H

2136.35

1500L x 500W x 90H

2136.36

600L x 600W x 80H

2136.37

800L x 600W x 90H

2136.38

900L x 600W x 90H

2136.39

1000L x 600W x 90H

2136.40

1200L x 600W x 90H

2136.41

1000L x 700W x 90H

2136.42

1200L x 700W x 90H

2136.43

800L x 800W x 90H

2136.44

1000L x 800W x 90H

2136.45

1100L x 800W x 90H

2136.46

1200L x 800W x 90H
