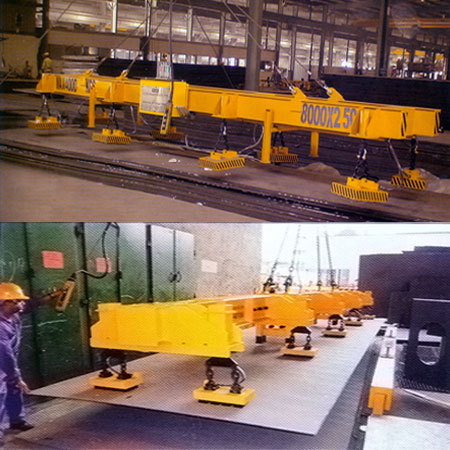

Electro Permanent Magnetic Plate Handling Equipmnt

Electro Permanent Magnetic Plate Handling Equipmnt
Electro Permanent Magnetic Plate Handling Equipmnt
Product Code : 01
Product Description

Elctro Permanent Magnetic Plate Handling Equipment

Features

  • EPMs suspended from fixed length spreader beam so that the maximal array of plates are covered.
  • Optimize the available work area by elimination of dunnage.
  • Electronic control panel along with standby PCB card.
  • Double Mag Cycle - this ensures the safe lifting of the load.
  • Power Control - Magnetic Power can be varied in 4 steps
  • Magnets can be selectively switched according to the length of the plate being handled.
  • Smaller Plates - Only internal magnets are switched ON.
  • Larger Plates - All the magnets are switched ON.
  • Safety Interlock Key - to Magnetize / Demagnetize 2 buttons are to be pressed simultaneously. This eliminates the chance of accidental operation of the magnet.
  • "Inching" feature - When the magnet is switched ON, it might lift more than a single plate. Inching is a feature, which when invoked reduces the magnetic power slowly such that additional plates, if lifted, are dropped. This is utilized to make sure that only one plate is handled at a time.
  • ADPREM - Accidental Demagnetization Prevention Mechanism. Disable the demagnetization cycle when carrying load.
  • Lamp Block - Displays the systems present state.
  • Chain and Hanging Arrangement - made of grade 80 high strength steel along with bull ring.

Optional Units

  • Radio Remote Control - Operates from a convenient distance all the functions i.e, MAG / DEMAG / Inching / Telescopic Contraction and Expansion (if provided) functions.

Applications

  • For loading / unloading plates from Railway Wagons / trucks.
  • For feeding plates onto a flame / plasma cutting machine table, one at a time.
  • For storing in Plate yards.
  • Can be utilized with EOT / Gantry / Mobile Cranes etc.

Art No.

Beam Weight
(Approx)
Kg.

Magnet Specifications

Plate Characteristics

Lifting Capacity

Number of Magnets

Magnet Distance

Th

Length

Width

L1

min

min

max

mi

max

max

mm

mm

mm

mm

mm

kg

kg

2145.01

750

5 (5x1)

1050

5

500

6300

500

3000

2000

2145.02

1200

4 (2x2)

2800

5

3000

6300

500

3000

4000

2145.03

1500

8 (4x2)

2200

5

2500

12500

500

3000

5000

2145.04

1800

8 (4x2)

2200

5

2500

12500

500

3000

7500

2145.05

2500

8 (4x2)

2200

5

2500

12500

500

3500

10000

2145.06

2800

8 (4x2)

2200

8

2500

12500

500

3500

12000

2145.07

3300

8 (4x2)

2200

8

2500

12500

500

3500

16000

  • Due to continuous upgradation in design there could be changes in specification.
  • Other sizes on request.
