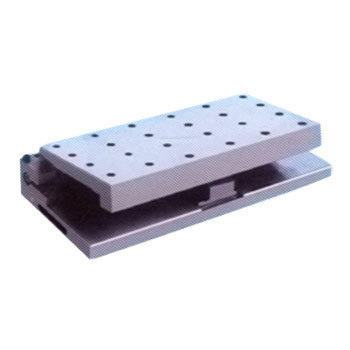

Sine Table

Sine Table
Sine Table
Product Code : 20
Product Description

Being a highly quality centric firm, we are engaged in manufacturing and supplying a superior quality Sine Table. These are used for precision measurement of slip gauge & light machining. Our well experienced personnel team manufactures these tables in compliance with the set industrial norms and guidelines using the premium quality alloy steel. We can make the Sine Table available for the clients in different customized specifications as to suit their requirements. Also, we offer the table at reasonable price.

Features:

  • Hardness 60+2 RC & Tempered

  • Can reduce possibility of distortion

  • Angle can be set within +5 seconds

Other Features

  • Used for Precision measurement, setting of angles utilizing slip gauge & light machining
  • Accuracy for squareness, parallelism & flatness is 0.005mm up to 200L & 0.010mm up to 450L
  • Centre distance between rollers is with in 0.005mm
  • Made from high quality alloy steel
  • Hardness 60+2 RC & Tempered
  • Firm hinged clamp to reduce possibility of distortion
  • M6 & M8 tapped holes for job clamping
  • Specifications:

S.No

Art No.

Size(mm)

Centre Distance (mm)

Inclination

1

247.01

150Lx120Wx65H

70

0-45o

2

247.02

250Lx150Wx65H

100

0-45o

3

247.03

300Lx150Wx65H

100

0-45o

4

247.04

450Lx150Wx65H

100

0-45o
